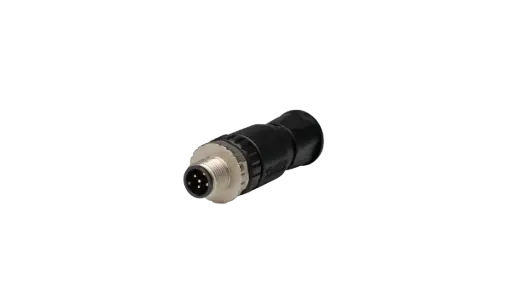

For self-assembly.

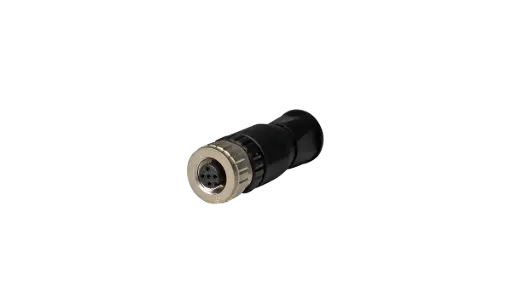

For self-assembly

For self-assembly.

For self-assembly.

.

.

.

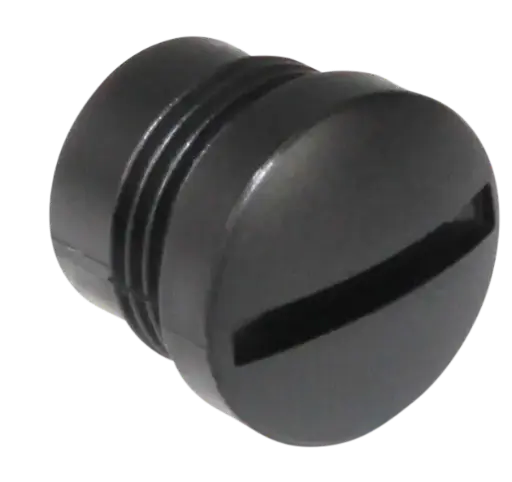

Protection cap for unused M12 sockets

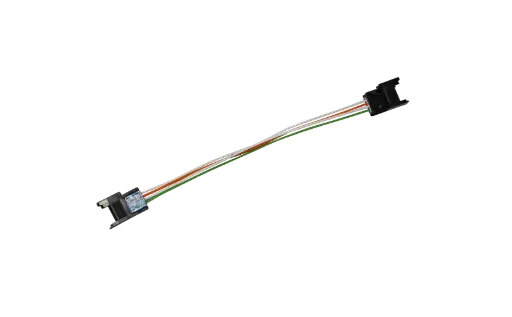

Allows a powerIO® box to serve as a bridge, enabling continued Ethernet communication in the network.

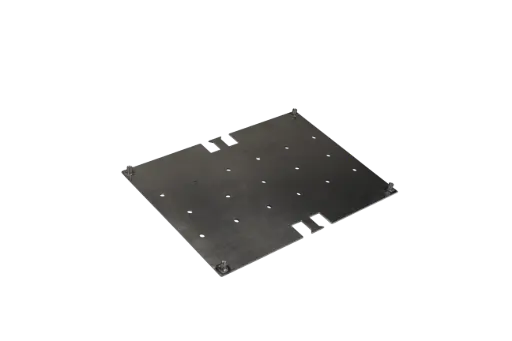

Installation plate for the T1 series. Allows easy preassembly for electrical installation. 4 threaded bolts for subsequent screwing on of the powerIO®-Box. With cut-out for mounting on pipes using lashing straps.

This starter set consists of:
1 x powerIO® box (T1.B100)
1 x Start Unit (T1.S100)
20m powerIO®-Line (T1.L100)

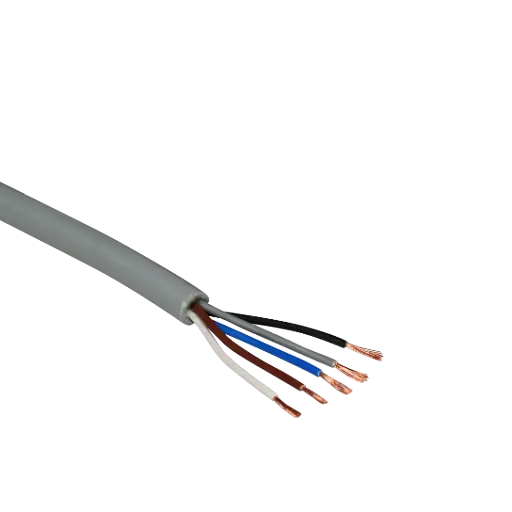

5m installation cable (T1.Z109)
1 x M12 cable 2m (T1.Z104)
1 x M12 cable 5m (T1.Z105)
1 x M12 cable 10m (T1.Z106)
1 x M12 cable 2m (T1.Z107)

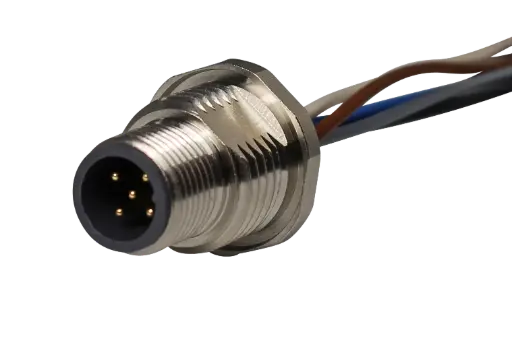

1 x M12 flange plug (T1.Z114)
1 x powerIO®-Y distributor (T1.Y200)
1 x powerIO® WiFi Dongle (T1.D200)

* Purchase of the starter set only once per customer possible. Product not discountable.

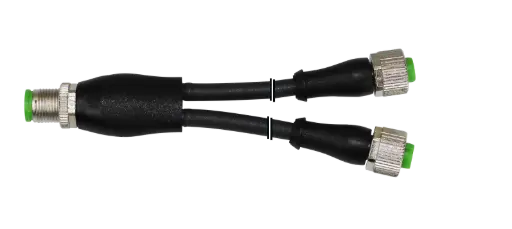

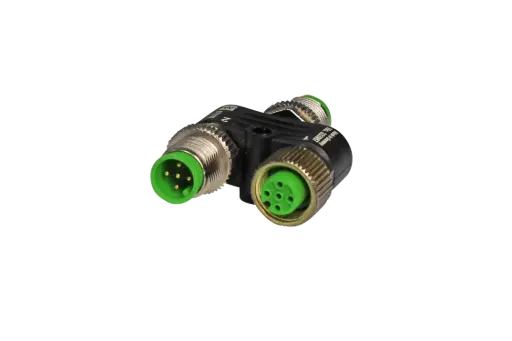

Plug <-> 2x socket
M12 A-coded 5-pole

Allows two M12 plugs to be connected to one socket. Bus and voltage bridged. Can be plugged directly into the powerIO box to connect two sensors/actuators.

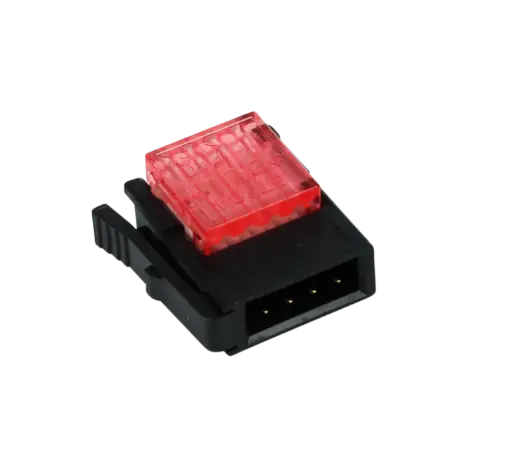

4-pin for patch cables
CAT Tool-free assembly (Insulation displacement connection / 0.14–0.25 mm²)

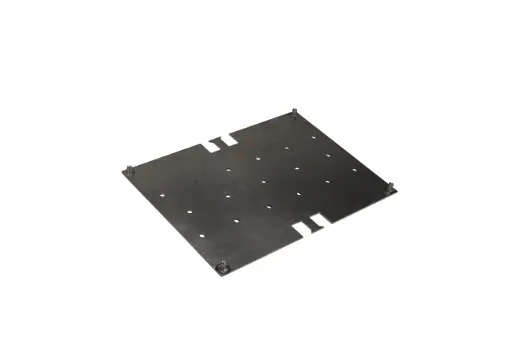

Installation plate for the T1 series. Allows easy preassembly for electrical installation. 4 threaded bolts for subsequent screwing on of the powerIO®-Box. With cut-out for mounting on pipes using lashing straps.
With premounted magnets for mounting for example on ventilation ducts.

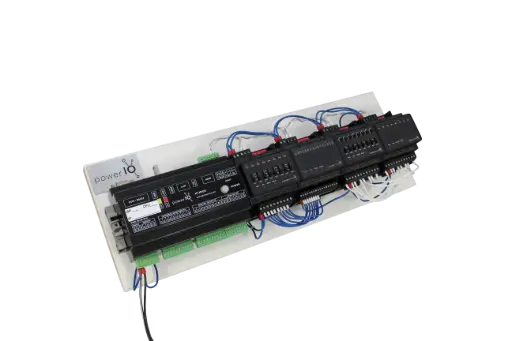

- 1 x H1.M100 with CODESYS MC license
- 1 x HVAC Building Automation Package SL license pre-installed on dongle
- 1 x H1.8DO.MOD
- 1 x H1.16DI.MOD
- 1 x H1.8AO.MOD
- 1 x H1.8AI.MOD
Completely wired including power supply

*Purchase of the test setup is limited to one per customer.
