pro Person / pro Tag

Tagesschulung, 8 h inklusive Anreise und Abreise
Inhalt:
o Absprache nach Kundenwunsch
o HLK anhand den ClimaEco Produkten der „Messewand“
o Allgemeine HLK Programmierung
o Anlagenübersichten und Stand der Technik

Decentralized automation box.
230V power supply, ethernet communication, gateway function
2 x 230V outputs up to 6A
4 x M12 coupling A-coded for RS485 Connections incl. 24V/2A DC
Power supply (Port 1 to 4)
1 x optional slot (Port5)
1 x M12 service interface for commissioning with the App
Incl. shield clamp, ethernet, microfuse (A)

CODESYS license dongle with USB adapter for installation in the decentralized automation box T1.B100, including pre-installed CODESYS Multicore Runtime license.
For installation, the additional protective cover must be removed. Installation instructions are included.
Includes sticker "CODESYS License-Dongle inside" for placing on the powerIO box.

Fire damper module for 1x 230V fire damper, with galvanic isolation
- 2 digital inputs + 1 digital outputs relay 230V/16A
- power supply 230V AC
- Housing IP67 (160x140x81mm)
Connection via Modbus RTU.

Fire damper module for 1x 24V or 230V fire damper, with galvanic isolation
- 2 digital inputs + 1 digital outputs relay 230V/16A
- power supply 24V AC/DC
- Enclosure IP67 (160x140x81mm)
Connection via Modbus RTU.

Fire damper module for 1x 24V or 230V fire damper, without galvanic isolation (ECO)
- 2 digital inputs + 1 digital output relay 230V/5A
- power supply 24V AC/DC
- Enclosure IP67 (110x110x66mm)
Connection via Modbus RTU.

Fire damper module for 1x 230V fire damper, with galvanic isolation
- 2 digital inputs + 1 digital outputs relay 230V/16A
- BSK pluggable via AMP socket
- Power supply 230V AC
- Enclosure IP54 (160x140x81mm)
Connection via Modbus RTU.

Fire damper module for 1x 24V or 230V fire damper, with galvanic isolation
- 2 digital inputs +1 digital outputs relay 230V/16A
- BSK pluggable via AMP socket
- Power supply 24V AC/DC
- Enclosure IP54 (160x140x81mm)
Connection via Modbus RTU.

Fire damper module for 1x 24V or 230V fire damper, without galvanic isolation (ECO)
- 2 digital inputs + 1 digital output relay 230V/5A
- BSK pluggable via AMP socket
- Power supply 24V AC/DC
- Enclosure IP54 (110x110x66mm)
Connection via Modbus RTU.

Fire damper module for 2x 230V fire damper, with galvanic isolation
- 4 digital inputs + 2 digital outputs relay 230V/16A
- power supply 230V AC
- Enclosure IP67 (160x140x81mm)
Connection via Modbus RTU.

For a motorized fire damper with smoke detector integration.
2 relay outputs and 4 digital inputs for controlling motorized fire dampers with 230V and for integration of their end position contacts.
Potential-free relay output for applications such as smoke detector reset.
Enclosure IP67 (160x140x81mm)
Connection via Modbus RTU.

Fire damper module for 2x 24V or 230V fire damper, with galvanic isolation
- 4 digital inputs + 2 digital outputs relay 230V/16A
- power supply 24V AC/DC
- Enclosure IP67 (160x140x81mm)
Connection via Modbus RTU.

For a motorized fire damper with smoke detector integration.
2 relay outputs and 4 digital inputs for controlling motorized fire dampers with 230V AC or 24V DC and for integration of their end position contacts.
Potential-free relay output for applications such as smoke detector reset.
Enclosure IP67 (160x140x81mm)
Connection via Modbus RTU.

Fire damper module for 2x 230V fire damper, with galvanic isolation
- 4 digital inputs +2 digital outputs relay 230V/16A
- BSK pluggable via AMP socket
- Power supply 230V AC
- Enclosure IP54 (160x140x81mm)
Connection via Modbus RTU.

Fire damper module for 2x 24V or 230V fire damper, with galvanic isolation
- 4 digital inputs + 2 digital outputs relay 230V/16A
- BSK pluggable via AMP socket
- Power supply 24V AC/DC
- Enclosure IP54 (160x140x81mm)
Connection via Modbus RTU.

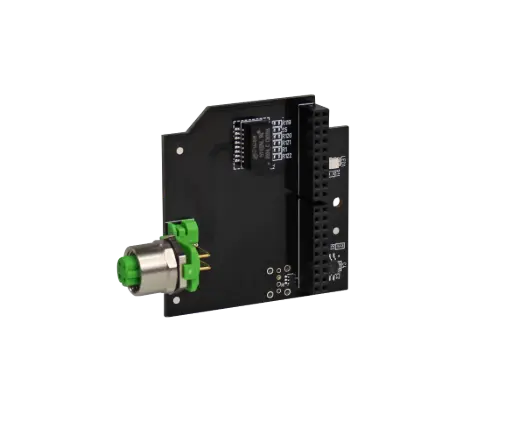

M12: 4-pin D-coded
Allows the connection of an M12 Ethernet cable. Integration of other IP participant with up to 100 Mbit/s.

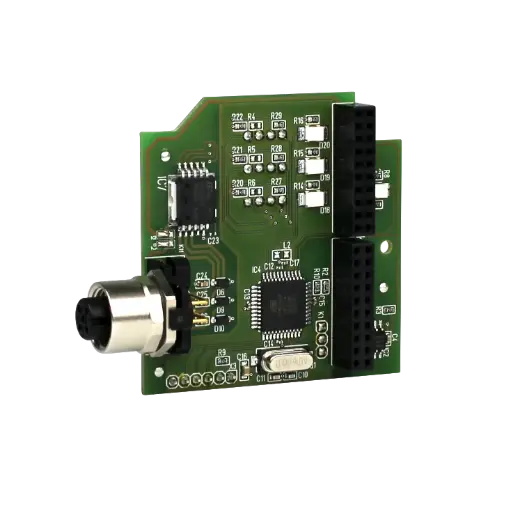

M12: 5-pole A-coded. Extended
Port 5 around a RS232 COM port. With 24V on M12 pins as output voltage

M12: 5-pole A-coded. Extended
Port 5 by another RS485 COM port. With 24V on M12 pins as output voltage.

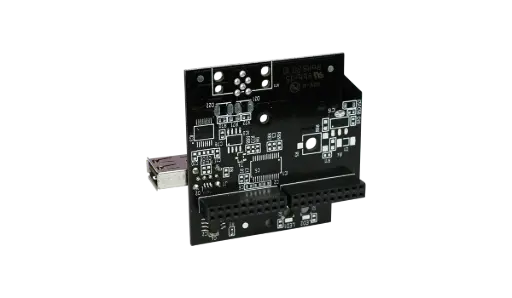

Expansion board for internal USB interface.
